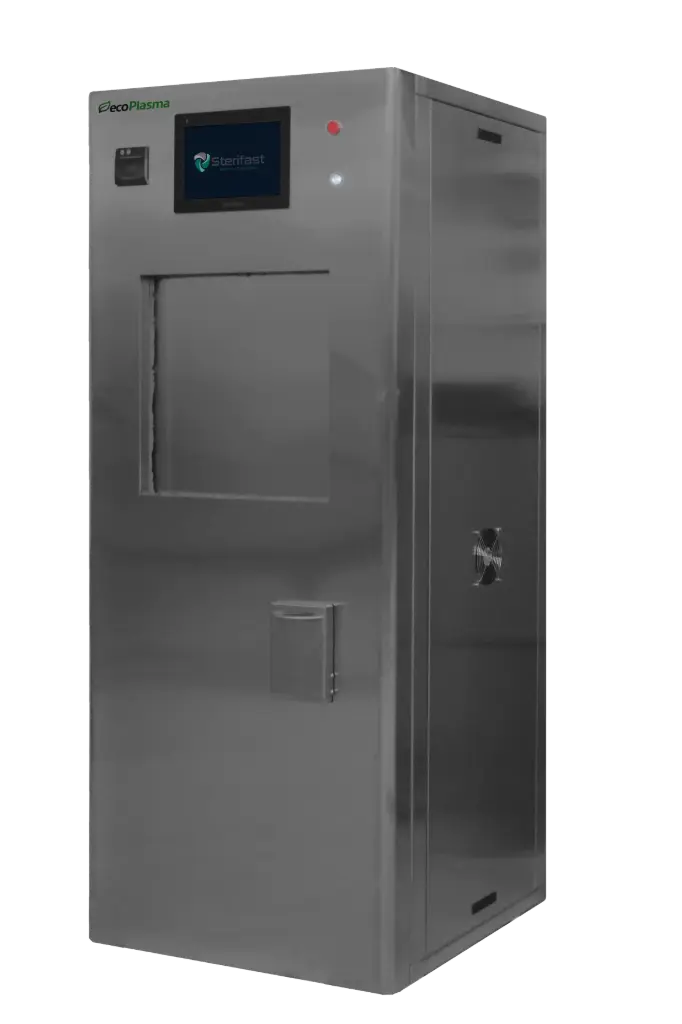

Sterifast EcoPlasma E110 Sterilizer

Cutting-edge sterilization technology designed to offer the utmost in safety and efficiency. Engineered to deliver high-performance, low-temperature sterilization with maximum safety and reliability for modern healthcare environments, the system offers chamber capacities from 50 to 160 liters, with customized configurations available upon request. The sterilization chamber is manufactured from high-quality non-corrosive aluminum, ensuring long-term durability and resistance to wear. Its user-friendly design includes an easily removable internal cover and a dual-shelf loading system for improved workflow efficiency. The device is equipped with a robust mechanical clamp system and high-grade stainless steel components, ensuring secure and stable operation throughout all cycles. An automated sterilizing agent refilling system eliminates direct operator contact with chemicals, supporting RFID-based bottle recognition, automatic bottle perforation, and efficient transfer of solution into the main tank via a sealed drawer mechanism.

Key Features

• Fully automatic single or double-door configurations, made of durable aluminum with advanced interlock safety system
• Intelligent Sliding Door Control System (I_SD_C): prevents door operation during active/failed/interrupted cycles, 10-minute closing countdown, acoustic warning, anti-pinch reversal, energy-saving logic
• Pedal-activated sliding door system for hands-free convenience
• Cycle types: Advanced (hollow loads), Normal (non-hollow loads), Endoscope (flexible and rigid endoscopes), Free (custom made)
• Test cycles: Test I (penetration), Test II (leakage), Test III (leakage and penetration)
• Efficient penetration in long lumens (10 m extension with 1 mm diameter, both ends open; 3 m extension with 1 mm diameter, one end open)
• Routine control with H₂O₂ biological and chemical indicators; compatible with Lumen Kit (process challenge device)
• Automated sterilizing agent refilling: no operator contact with chemical, sterilizing agent tank preserves properties, drawer with bottle holder, automatic perforation, RFID bottle recognition
• Recharge bottles supplied in sealed plastic bag (leak verification), 18-month shelf life, boxes of 4 bottles
• Sterilizing agent shippable by air due to low H₂O₂ concentration (Sterifast is a Known Consignor of Air Cargo, No. PT/KC/01-00006)
• 7" touch screen HMI (one or two), Windows operating system, Ethernet communication, Phoenix Automation and control board
• Cycle data printout (phases, phase time, total time, pressure, temperature, H₂O₂ concentration), remaining time display, "Plasma OK" indication, real-time graphs, cycle archive with date search
• USB connection; data transfer to CSSD traceability system via network or USB (STV files)
• Sterifast VIEWER PC software: links graphic cycles to load/department/operator, saves PDF, monitors temperature/pressure, customizable desktop
• Supervision Software for technicians, with remote software option (available for distributors under agreement)
• Display/printout in selectable languages (EN, PT, ES, DE, FR, IT, IND, PL), translatable to local languages
• Differentiated acoustic signals (intermittent = correct cycle, continuous = failed cycle)
• Automatic preheating of the load and automatic chamber heating with energy-saving features
• Sterifast double-stage High Vacuum Pump with oil condenser/separator, automatic pre-heating, high-efficiency condenser, large capacity molecular sieve, high-efficiency oil separator
• High Voltage Plasma Generator located outside the sterilization chamber, no radiation damage to materials, equipped with temperature sensor
• Safety systems: cycle-start conditions check, overheating/probe-failure detection, maximum temperature safety (chamber, vaporizer, each door), independent temperature control per element, HEPA filter 0.2 μm, no electromagnetic radiation, safe environment (residue level <1 ppm)
• Easy installation: no water, compressed air, drain, or special ventilation required — just an electrical connection; mobile on four wheels
• Validation possible under request according to ISO 14937
• Suitable for surgical instruments, flexible endoscopes, laparoscopy boxes, ophthalmology/cardiology/MIS/neurosurgery/otolaryngology devices, electric scalpels, electric cables, optical fibers, and thermo-sensitive materials (max. 60°C) or materials normally sterilized at 121°C
• Compatible packaging: polypropylene or polyethylene sterilization pouches, reels, and sheets
• Patented Vaporization System (WO 008755/2009 A1, Patent No. PCT/PT000029/2007) and sterilizing agent refilling process (Patent No. PCT/PT2013/000025 - WO 2014/178740 A1)
