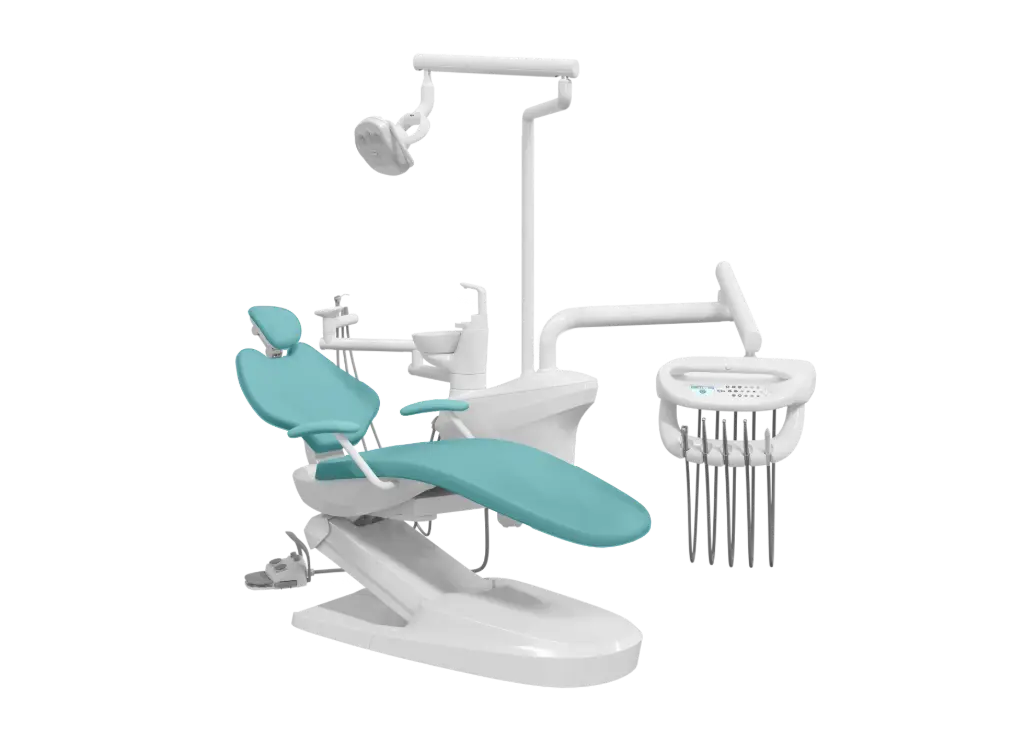

Ajax Dental Unit AJ19
AJ19 is an intelligent, comfortable high-model dental unit designed for efficient four-handed operation. It features a sturdy and comfortable chair frame with linkage slide rail structure and precise aluminum casting, offering ergonomic movement suitable for any height. The function-rich operation panel provides comprehensive digital control, including scaler, endodontic mode, water temperature regulation, and disinfection process monitoring, while the full-automatic sterilization system covers all waterlines with one-button activation.
Key Features
- Full-automatic sterilization system, one-button start, all waterlines covered
- Ajax smart control system with 3.5" touch screen; 20-function control panel (doctor side) and 10-function control panel (assistant side)
- Function-rich operation panel: on-screen timer, scaler control, 6x4 group chair programs, Trendelenburg position, self-check on start, fiber optic handpiece switch, endo function mode, water temperature control, one-button water source switch, disinfection process monitoring, micromotor control (with endodontic mode)
- Chair suitable for any height, adjustable from 385mm to 825mm
- DC24V electric backrest and chair motor with soft start and stop
- Articulate headrest (one-hand operation) and swivel armrest
- Nappa leather upholstery
- Ultra-flexible assistant unit with 3 individual hanging units and rotatable control panel

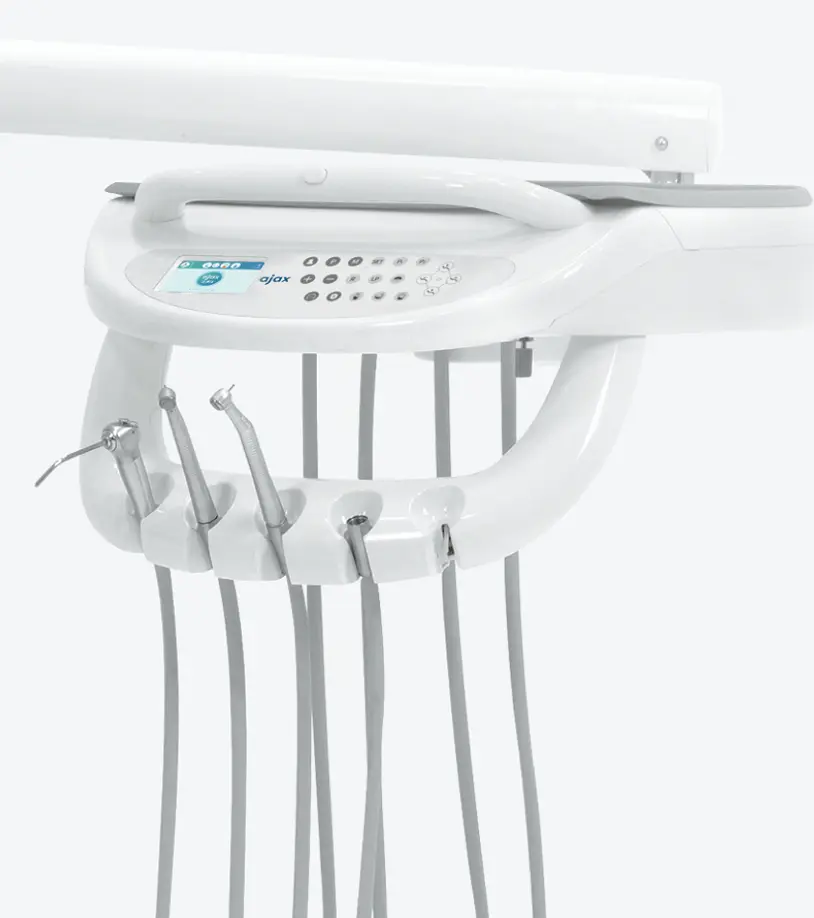

- Delivery system with 3.2" LCD screen and 480 x 380mm dentist tray with sterilizable silicone pad
- Rotatable ceramic cuspidor (135°), removable for sterilization
- Pure water and disinfectant system with 1.3 L and 1.5 L water bottles (also listed as 1300ml + 1200ml)
- Optional built-in amalgam separator
- Optional continental delivery system with omni-directional rod
- Multifunctional dual pedal foot control (water and air on separate pedals)

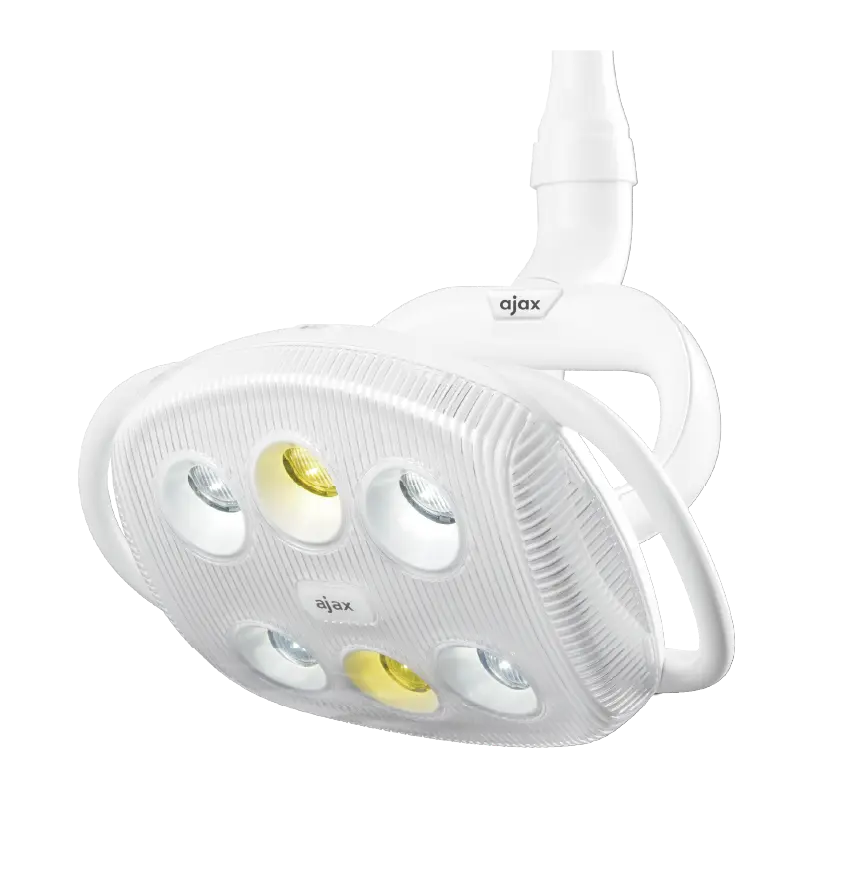

- Amber 2 LED dental light with sensor control, white/yellow/mixed light modes, max. 40,000 lux, colour temperature 3500K-5200K+
- Includes AJAX03 dental stool (6 functions, silicone wheels)
Technical Data
| Specification | Value |
| Chair height adjustment | 385 - 825 mm |
| Control panel | 20 functions (doctor) / 10 functions (assistant) |
| Screen | 3.5" touch (main) / 3.2" LCD (delivery system) |
| Dentist tray size | 480 x 380 mm |
| Water bottles | 1.3 L (disinfection) / 1.5 L (water) |
| Light output | Max. 40,000 lux |
| Colour temperature | >5200K (max) / <3500K (min) |
