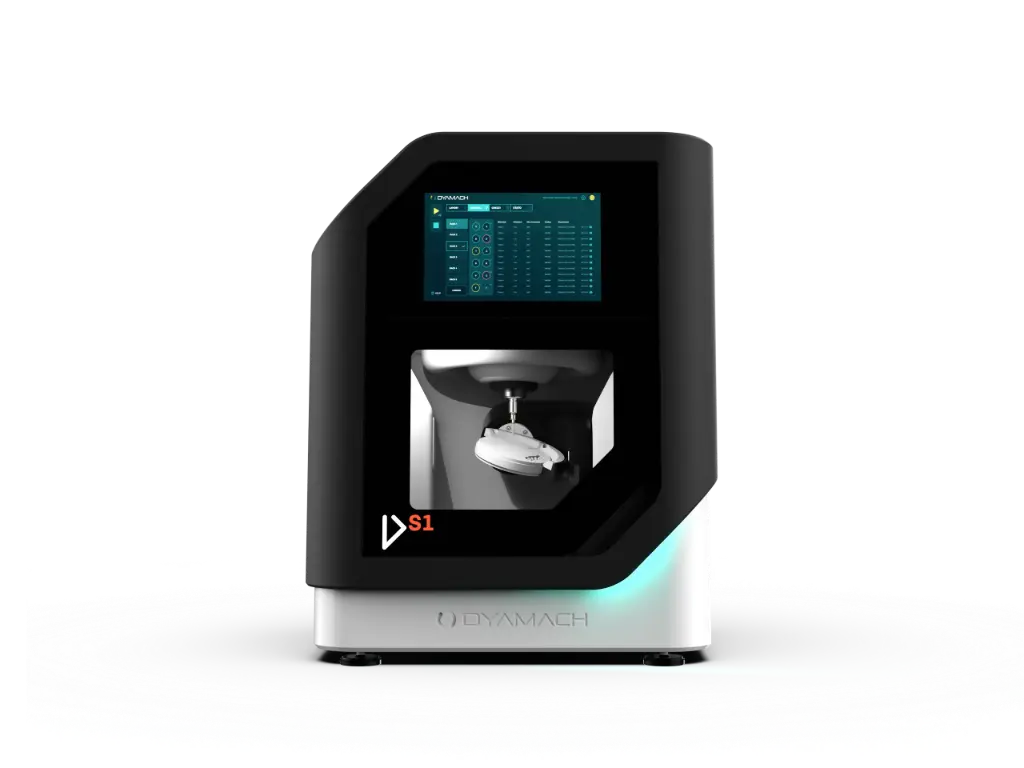

Dyamach Dental Milling Machines DS1
DS1 is a compact 5-axis milling machine for dry machining processes, ideal for crowns and bridges. A new design for a standard machine, agile and precise, characterised by exceptional accessibility, DS1 is Dyamach's response to the need to make the entire range of soft materials required for the construction of dental prostheses rapidly and with reliable results. The new Dyamach NC greatly simplifies the user experience, thanks to its clear and intuitive structure, while maintaining exceptional robustness without affecting ergonomics or ease of transport.
Key Features
- New graphic interface with improved usability, contemporary, functional and intuitive, plus online help for the operator
- System optimised to reduce vibration, maximising tool lifetime and precision
- Automatic calibration
- Disc holder for rapid loading/unloading
- Removable rack-type tool magazine
- Winner of the Red Dot Design Award
Technical Data
| Specification | Value |
| Dimensions | 52 x 54 x h65 cm |
| Weight | 65 kg |
| Spindle power | 0.75 kW |
| Spindle speed | 100,000 rpm |
| Machining type | Dry |
| Collet diameter | Ø 3 mm / 4 mm |
| Number of tools | 14 |
| Spindle tilt | A-axis 360° / B-axis -180°/+40° |
| Rated pressure | 6 Bar |
| Blank diameter | Ø 98±0.5 mm |
Compatible Materials
Zirconium, Wax Dry, PMMA Dry
Applications
Anatomical bridges and crowns
